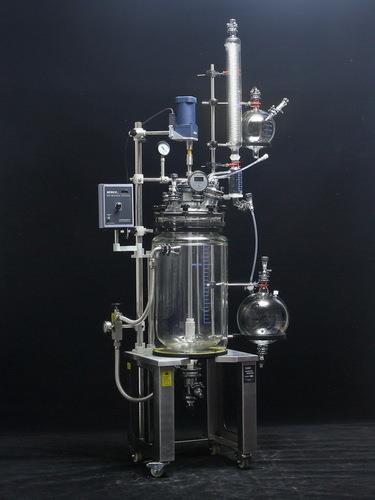

Senco Glass reactors are developed by sticking to the basics, keeping in mind safety of the user and focusing on giving desired results. They enable to achieve desired results affordably and are backed by trustworthy service. The Cap Style reactor is simple yet accurate, basic yet precise, up to the mark on performance and friendly on budget.
These Jacketed Reactors are used for a variety of applications including:
· Common Chemical Reactions Liquid/Liquid, Liquid/Solid
· Reflux Boiling
· Azeotropic Distillation (Phase Separation)
· Evaporation to any desired consistency
· Multi-component Reactions
· Gas dispersion below liquid surface
· And many more….
Necks on Flask Cap
Charging Neck F40– Pure charge process without gel pollution.
Thermometer Neck F40– Digital Thermometer for direct temperature measurement.
Condenser Neck S51– Ball joint connection, easy to assemble with less vibration.
Drip System Neck F40 – Dripping system for adding solvents.
Solid Feeding Neck F60/F80 – For addition of any solids during reaction
Stirring Neck F60/F95 – For stirring
Spare Neck F40 – For any other user desired function.
Vacuum Sealing system
Specially designed and precisely manufactured Anti-corrosion and Wearable Sealing Systems in these Jacketed reactors enables to reach ultimate vacuum rates of less than 3 Torr. High quality material leads to longer seal life and hence about 90% of the users did not replace the seal in one year.
Mirror Polished Flange Processing Technique
SENCO glass flanges applies fine cold polish technique, which guarantees pressure tightness in static joint connections.
Flange Quick Press Ring
One-piece quick clip design eliminates dead seizures in glass joints. Offer new experience on easy, reliable and high sealing connection for flanges (no tools required).
PTFE Bottom Side Discharge Valve
No dead angle, air isolated discharge. Preload discharge valve is able to decrease flask crack risk due to improper over-screwing of discharge valve. Zero dead volume, No-sample accumulation in valve during operation and discharge. Maximum drift diameter is Ø22mm for 10L and 20L reactor and Ø32mm for 50L reactor.
